EE074

日期:2020-3-12 17:42:15

EE074



Temperature Probe with Modbus RTU

The EE074 is dedicated for accurate temperature (T) measurement of air, gases and liquids.

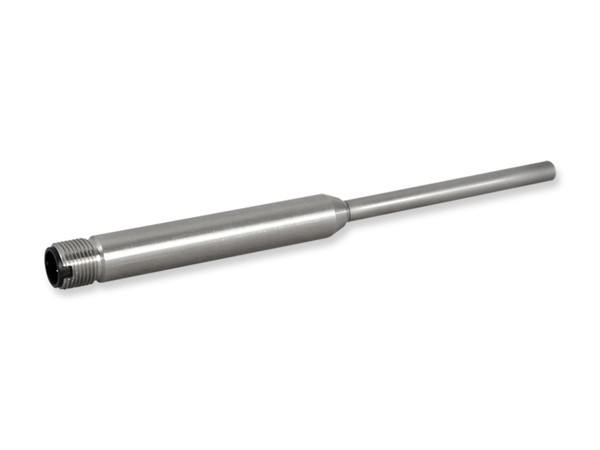

The robust stainless steel probe is ideal for climate and process control in the food and pharmaceutical industries,

in clean rooms or in agriculture. It offers a high accuracy of ±0.1 °C and a wide temperature range up to -70...105 °C (-94... 221 °F).

The measured data is available via the RS485 interface with Modbus RTU protocol.

obust and Reliable
The IP68 stainless steel enclosure in combination with fully encapsulated electronics leads to outstanding long term measurement performance even in harsh and condensing environment.

Easy Installation
The M12x1 connector and the choice of mounting accessories minimize the installation costs. The immersion well with innovative clamp ring allows for safe, tool free installation and removal in pressurized liquids up to 25 bar (363psi).

Configurable and Adjustable
An optional adapter and the free EE-PCS configuration software facilitate the setup and adjustment of the EE074.

Typical Applications

  • Process and climate control
  • Food and beverage industry
  • Pharmaceutical industry
  • Clean rooms
  • Agriculture
