露点变送器

EE354用于冷冻式干燥机的微型露点变送器

日期：2016-5-25 15:45:04

EE354露点仪是一款专为监测冷冻式干燥设备的露点温度而开发的产品。其优越的长期稳定性及在-3...20℃的全量程范围内可保持±1℃的测量精度的特点，使得EE354成为冷冻式干燥设备的理想选择。

紧凑型的外壳设计使得EE354可以安装在狭窄、紧凑的空间中。坚固耐用的不锈钢外壳，带有½ISO或NPT螺纹和M12x1电气连接，便于快速轻松地集成到测量任务中。

典型应用

-20...50 °C Td

测量范围

± 1 °CTd

精度

Modbus RTU和4-20mA

输出

10-28V DC

供电

Reliable dew point monitoring plays an important role in avoiding unnecessary costs from compressed air systems with a refrigeration dryer.

It allows, for example, the reduction of service intervals and improved planning of new investments.

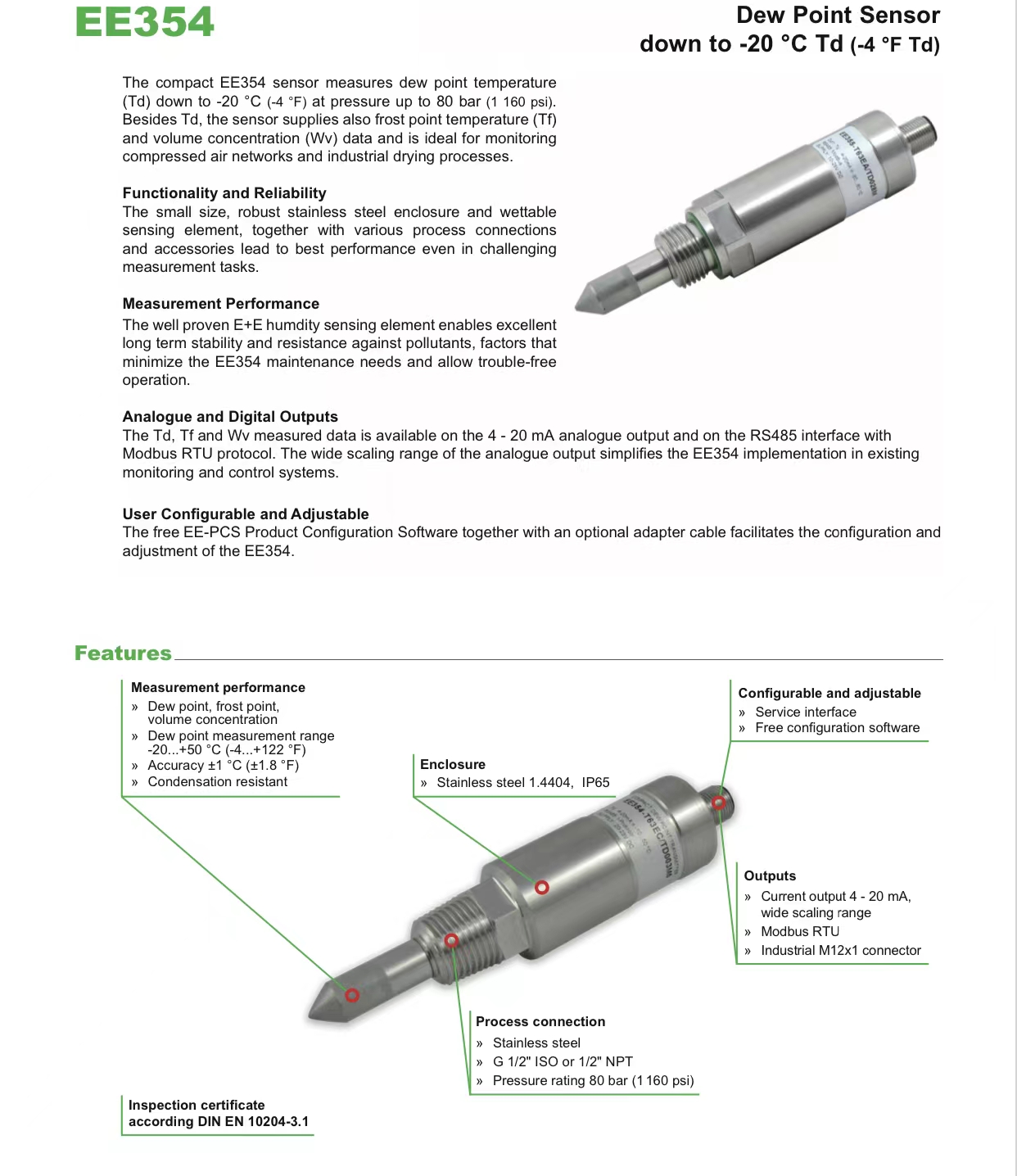

The EE354 dew point meter from E+E Elektronik has been developed specifically for monitoring the dew point of refrigeration dryers.

The high measurement accuracy of ±1 °C in the range of -3...20 °C Td and excellent long-term stability of the dew point sensor make

the EE354 the ideal meter for OEM manufacturers of refrigeration dryers.

Due to its very small and compact design, the EE354 can be easily installed even in tight, confined spaces.

The extremely rugged stainless steel housing, a ½" ISO or NPT thread and the M12x1 connector for electrical connection facilitate quick

and easy integration into the measuring task.

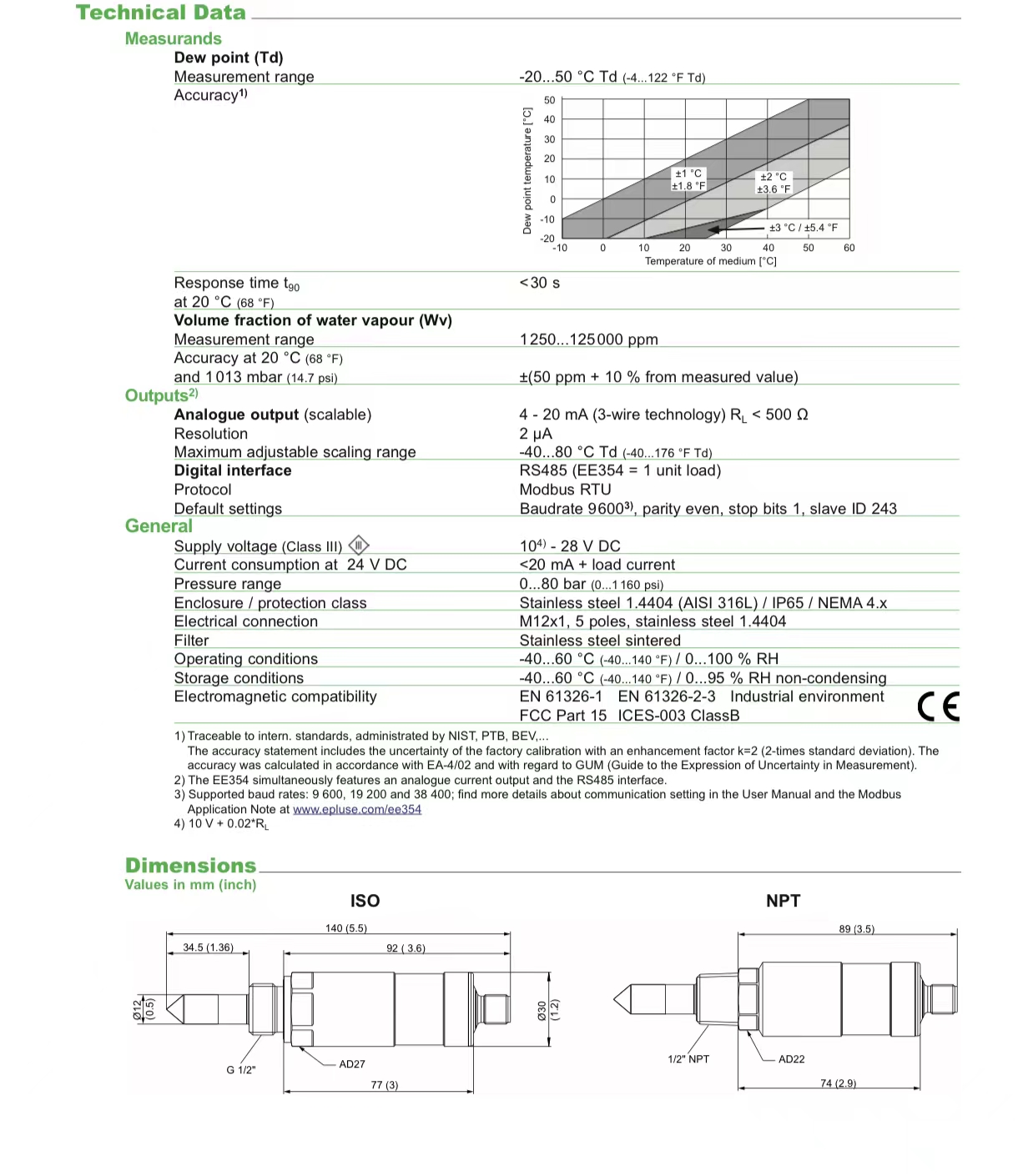

Key features

Measurement range -20...50 °C Td

Measurement accuracy ±1 °C at -3...20 °C Td

Analogue output 4...20 mA

MODBUS RTU digital interface

Pressure-tight up to 20 bar

Typical applications

Compressed air monitoring

Refrigeration dryer
