EE046结露开关

日期:2016-4-22 15:49:11

EE046冷凝报警器有助于防止冷凝梁和其他关键冷点上的冷凝,并适用于安装在平面和最大直径为50毫米(2 ")的管道上.



当物体表面周围的空气相对湿度(RH)达到100%RH时,表面会发生冷凝. 依靠与表面非常好的热耦合,EE046可精确测量表面温度下的空气相对湿度.

在冷凝实际发生之前,继电器输出会在接近冷凝条件时发出预警. 该产品还会提示电源故障或电缆损坏. 状态LED灯指示正常运行,冷凝危险或电源故障.E+E专利涂层保护湿度敏感元件免受灰尘和污染物影响.

Key Features

  • 可靠的监测冷凝危险
  • 快速响应时间
  • E+E专利镀膜保护防止灰尘污染
  • 紧凑型设计方便安装
  • LED状态指示

典型应用

  • 冷冻梁
  • 开关柜
  • 环境控制

技术资料

  • 10...100% RH

    工作范围
  • 90 ±3% RH

    开关节点
  • t90 < 3 min.

    表面温度变化响应时间
  • t90 < 25 sec.

    相对湿度变化响应时间
  • 24 V AC/DC, 1 A

    最大开关负载
  • 24 V AC/DC

    供电

EE046 condensation monitor is used for detecting the danger of condensation on pipes, ducts and other surfaces before condensation actually occurs.

The device measures the relative humidity at the surface to be monitored and provides an early warning signal (relay) when the humidity reaches 90% RH.

The signal can be used for initiating control steps such as increasing the water temperature in a chilled ceiling, reducing the cooling capacity or switching on the heating.A special coating protects electronics and sensor against contamination.

Key Features

  • Early detection of condensation danger
  • High accuracy and long term stability
  • Compact design
  • Fast response time
  • Sensor protection
  • Easy mounting and wiring
  • LED status indication

Typical Applications

  • Chilled ceilings
  • HVAC, buliding automation
  • Rectifier cabinets for wind power generatiors
  • Switching and electronics cabinets

EE46结露报警器可以用来监测制冷天花板的结露状况,防止暖通空调系统在临界点发生结露,它还可作为运行于临近露点附近其他系统的结露监控。

由于结露报警器的温度与环境温度相一致,露点的测量实际是对相对湿度的测量,结露报警器基于高品质电容型湿敏元件来测量接近露点时的相对湿度。在达到 90% RH 的切换点时,结露报警器会为后续控制程序(如增加水温、降低制冷功能,打开加热系统等)的启动提供动作条件,并发出报警输出信号。报警器上的状态指示灯能及时提醒用户有结露危险。

产品经过特殊的镀膜处理后,能有效保护电子部件及敏感元件免受环境污染的影响。

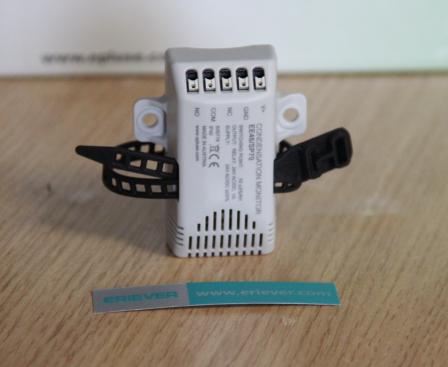

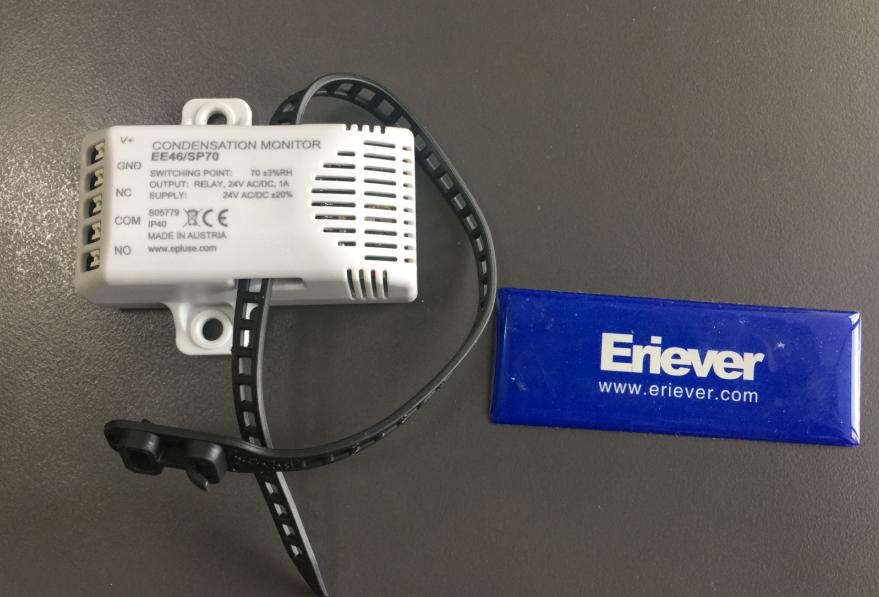

EE46 系列结露报警器可安装在水管、管道和墙面上

技术资料
10...100% RH
工作范围
90 ±3% RH
开关点
24 V AC/DC, 1 A
最大开关容量
24V AC/DC
供电
