The state of the art hand-held for precise measurement of various physical quantities, such as, humidity, temperature, dew point, CO2, air velocity, volumetric flow, air pressure. The numerous probes all incorporate high quality sensors developed by E+E and offer a total of 23 measurands.

Features

  • Continuous and single-point data logging with time and date stamp
  • Internal memory for 2 million measured values
  • 23 physical quantities (vary according to probe)
  • Capacitive TFT touch-screen
  • Up to 3 measurands displayed simultaneously
  • Real-time HOLD / MIN / MAX / AVERAGE readout
  • Data displayed as graphs directly on device
  • Integrated air pressure sensor·
  • USB-connectivity for software updates and data transfer
  • Free data management software
  • User friendly operation

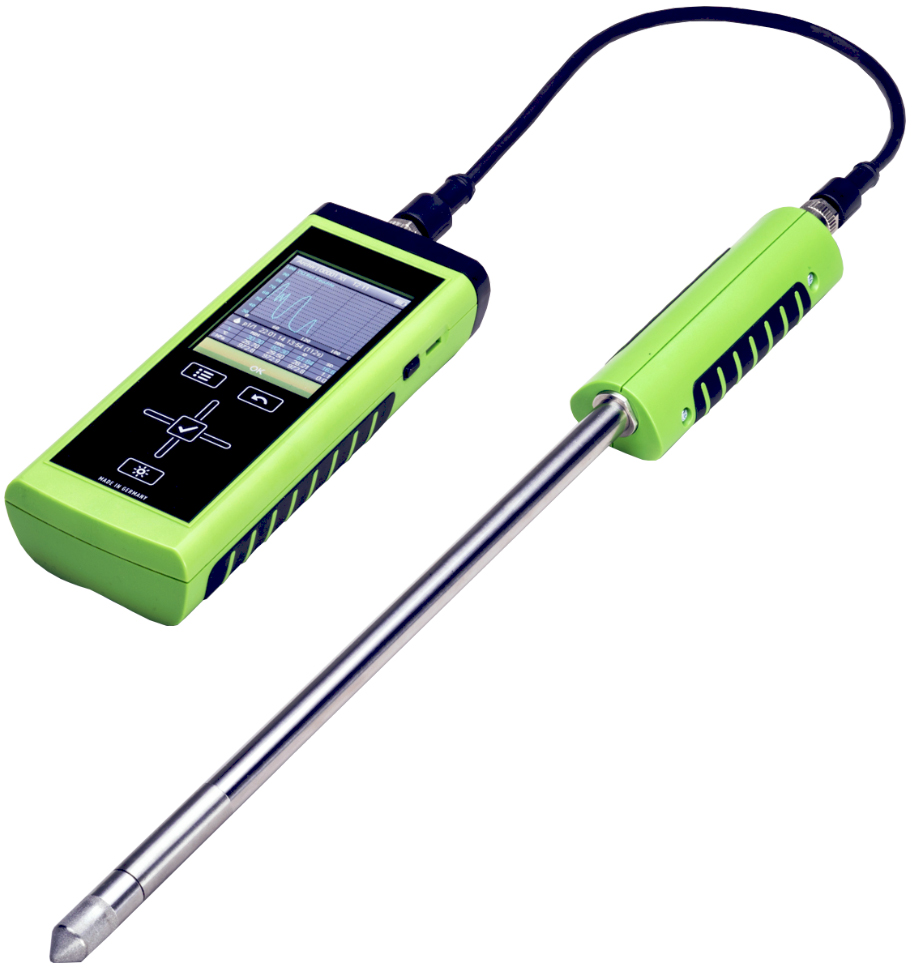

OMNIPORT 30   Multifunctional Hand-Held
The robust multifunctional hand-held meets the highest
requirements and comes with a wide range of
accurate probes that fit various applications.
Use touch-screen navigation to show, up to three
measurement values simultaneously on the capacitiveTFT display.
A total of 22 measurands (vary according to probe) is available, including:
• relative humidity RH
• temperature T
• dew point temperature Td
• absolute humidity dv
• mixing ratio r
• air velocity v
• volumetric flow
• air pressure p
Store measurement values in the internal memory of the device and use the free SmartGraph3 software to

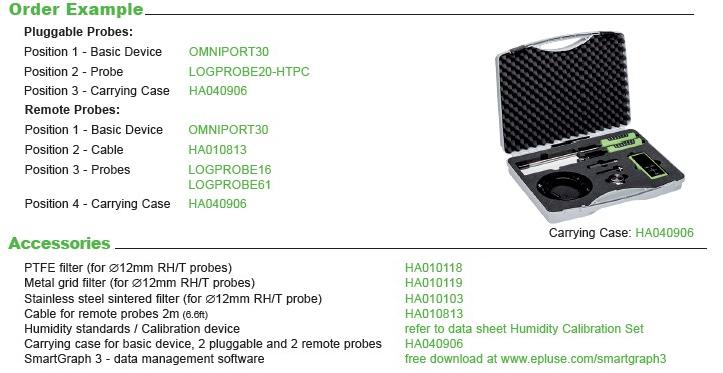

manage data on your PC. The optional carrying case accommodates the hand-held and probes, as well as
accessories.
